Microwave Sintering Furnaces

Microwave Sintering furnaces (lab or production scale) operate with Microwave radiation as a source of heating and offer distinct advantages to conventional furnaces. We offer a variety of Microwave furnaces for laboratory applications and production plants. We also provide solutions with hybrid furnaces where electrical heaters are combined with microwave energy for specific materials which do not absorb microwaves at lower temperatures. The furnaces we offer have controlled atmosphere with or without vacuum. They are designed to process material in batch or continuous mode.

Labscale Microwave Sintering Furnace – Labsinter

This is a revolutionary product which Enerzi offers, packed with advanced State-of-the-art features to enable conducting various sintering experiments to establish the preliminary results. It ideally suits prototype development.

Labsinter Furnace

  1. Effective Hotzone of 50 mm to 300 mm on all sides
  2. Maximum Process Temperature of 1750 deg.C
  3. Non-Contact Temperature Monitoring
  4. Installed Microwave Power of 2.9 kW to 11.6 kW
  5. Step-less Power Control using Microcontroller Module
  6. Digital Display of Power and Temperature
  7. Highly Integrated Interlocks
  8. State of the Art Process Control using High End PID Controller
  9. Industrial PLC with Touch Screen Controls
  10. Sintering in Inert/Reducing/Oxidising Atmosphere

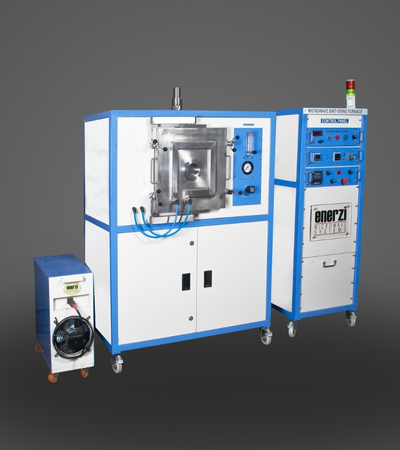

Pilot Scale Microwave Sintering Furnace – Microheat

This is an advanced Microwave Sintering Furnace with State-of-the-Art Control system and high microwave power to sinter larger samples at a pilot scale. We recommend this system for users who have graduated from their basics in Microwave Sintering and would wish to move on to the level of Industrial Microwave Sintering Applications. This system enables the user to sinter a broad range of materials in varied atmospheric conditions and it ideally suits industries looking at replacing their current heating systems with microwave sintering furnaces and hence it serves as a perfect bridge between lab experiments and industrial production.

Batched Sintering Furnace

  1. Throughput of the furnace ranging from 10 to 500 kg/batch
  2. Typical Hotzone of 300 to 1000mm on all sides
  3. Maximum Process Temperature upto 1750 deg.C
  4. Non-Contact Temperature Monitoring
  5. Installed Microwave Power of 10 kW to 300 kW
  6. Additional electrical heating elements for hybrid system
  7. Conveying System with controls for speed and position
  8. Step-less Power Control using Microcontroller Module
  9. Digital Display of Power and Temperature
  10. Highly Integrated Interlocks
  11. State of the Art Process Control using High End PID Controller
  12. Industrial PLC with Touch Screen Controls and a SCADA
  13. Sintering in Inert/Reducing/Oxidising Atmosphere

Continuous Microwave Sintering Furnace – Microheat

This is an advanced Hybrid Microwave Sintering Furnace with State-of-the-Art Control system and high microwave power to sinter larger samples in continuous mode. We recommend this system for industries. This system enables the user to sinter a broad range of materials in varied atmospheric conditions and it ideally suits industries looking at replacing their current heating systems with microwave sintering furnaces.

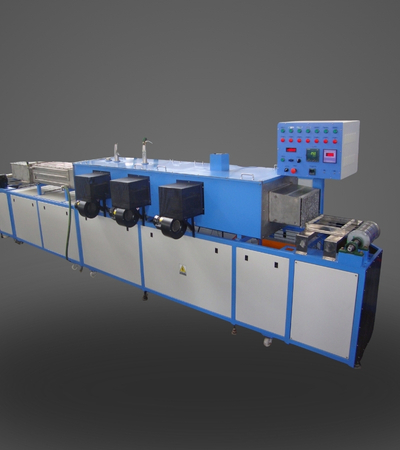

Microheat-02

Continuous Sintering Furnace

  1. Throughput of the furnace ranging from 50 to 10000 kg/day
  2. Typical cross section of 200 to 1000mm (W) and 150 to 600mm (H)
  3. Maximum process temperature upto 1750 deg.C
  4. Non-contact temperature monitoring
  5. Installed microwave power of 10 kW to 250 kW
  6. Additional electrical heating elements for hybrid heating
  7. Conveying System with controls for speed and position
  8. Step-less Power Control using Microcontroller Module
  9. Digital display of Power and Temperature
  10. Highly Integrated Interlocks
  11. State of the art Process Control using high end PID Controller
  12. Industrial PLC with Touch Screen Controls and a SCADA
