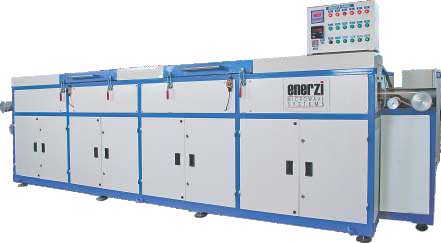

Continuous Microwave Drying Ovens – MicroDrier

The microwave drying oven has been developed and evaluated for use as an alternate method of drying. The accelerated drying rate achieved in this method, suggests that microwave drying technique is well suited to industrial applications in drying. Microwave drying provides an alternative to traditional drying methods. Enough work has been done to demonstrate the innumerable advantages of microwave drying both at lab scale and at industrial production level around the world. Typical drying applications include drying of Carbon Blocks, Ceramic Products, Fruits & Vegetables, Food Grains & Wood with treatment. One of the greatest advantages that Microwave Drying offers as against the traditional methods is the rapid rate of drying. Combining Microwave Heating with some of the traditional methods gives added advantages of both methods.

Enerzi offers a wide range of Hybrid Microwave Drying Ovens for a variety of products with the following specifications.

Salient Features

1. Microwave Frequency of 2450 MHZ
2. Throughput ranging from 50 to 5000 kg/hour ( 1 to 120 Tonne / Day)
3. Typical Cross Section of 400 to 1500mm (W) and 150 to 300 mm (H)
4. Typical Length Of the System ranges between 2 to 15 meters
5. Conveying System with speed controls from 2 to 50 mm/sec
6. Maximum Process Temperature from RT to 120 deg. C
7. Product Temperature Monitoring through suitable sensors
8. Installed Microwave Power of 5 kW to 100 kW
9. Step-less Power Control using Microcontroller Module
10. Digital Display of Power and Temperature
11. Exhaust Air Circulation of 100 to 1000 cfm
12. Highly Integrated Interlocks
13. Industrial PLC with user friendly controls

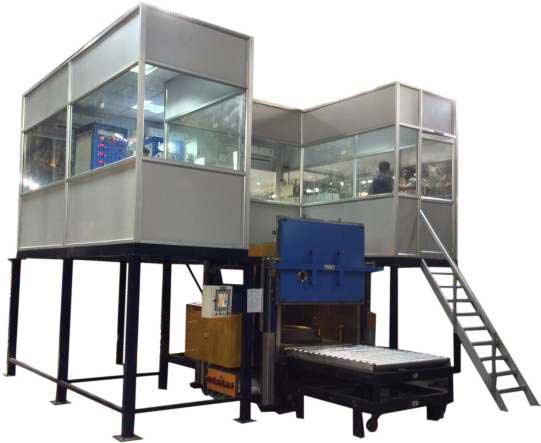

Batch Type Microwave Drying Ovens

Batch type microwave driers are designed and developed to carry out drying of materials and food products in batches of 25 to 500 kgs. The system is ideally suited for low production factories and plants where the daily output is not very high. It is also suited where the previous stage of processing and the next stage of processing after drying is done in batches.

Salient Features

1. Micrwave Frequency of 2450 MHz
2. Batch size ranging from 25 to 500 kgs
3. Typical drying cycles ranging from 10 minutes to 12 hours
4. Typical loading volumes of 100 litres to 2000 litres
5. Exhaust Air Circulation of 100 to 1000 cfm
6. Maximum Process Temperature from RT to 120 deg. C
7. Product Temperature monitoring through suitable sensors
8. Installed Microwave Power of 10 kW to 200 kW
9. Step-less Power Control using Microcontroller Module
10. Digital Display of Power and Temperature
11. Rotary table with rotation speeds of 1 to 10 RPM
12. Highly Integrated Interlocks
13. Industrial PLC with user friendly controls

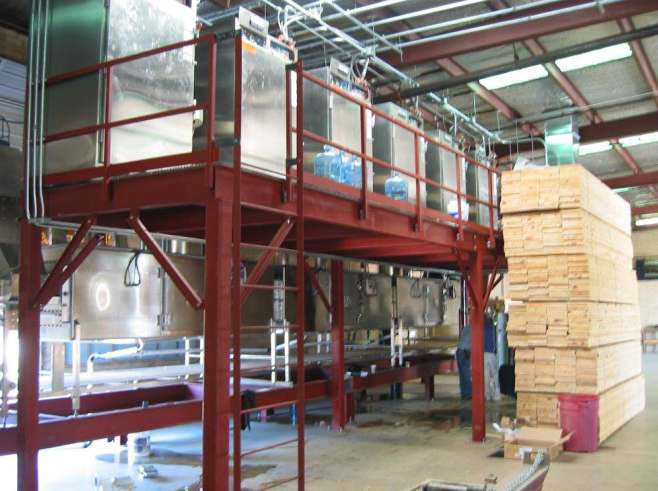

Industrial Microwave Drying Ovens

These are large scale industrial microwave driers built in collaboration with Ferrite Microwave Technologies LLC, USA. Typical drying applications include drying of Carbon Blocks, Ceramic Products, Fruits & Vegetables, Food Grains & Wood with treatment. One of the greatest advantages that Microwave Drying offers as against the traditional methods is the rapid rate of drying. Combining Microwave heating with some of the traditional methods gives added advantages of both methods. Enerzi offers a wide range of Industrial Hybrid Microwave Drying Ovens for a variety of products with the following specifications.

Salient Features

1. Microwave Frequency of 915 MHz
2. Throughput ranging from 0.5 to 10 tonnes/hour
3. Typical cross section of 400 to 1500mm (W) and 150 to 300 mm (H)
4. Typical length of the system ranges between 10 to 50 meters
5. Exhaust Air Circulation of 100 to 1000 cfm
6. Maximum Process Temperature from RT to 120 deg. C
7. Product Temperature Monitoring through suitable sensors
8. Installed Microwave Power of 75 kW to 1500 kW
9. Step-less Power Control using Microcontroller Module
10. Digital Display of Power and Temperature
11. Conveying System with speed controls from 1 to 100 meter/min
12. Highly Integrated Interlocks
13. Industrial PLC with user friendly controls

Microwave Drying Ovens

Enerzi Microwave Systems Pvt. Ltd. has been introducing state of the art microwave machinery time and again. Now we bring this state of the art technology to Foundries to save energy and reduce casting defects.

Microwave Core Drier is the latest technology in industrial drier to save energy costs in foundry. typically foundries use Oil fired, Gas fired or electrical driers. Microwave driers save 25-35% of energy costs and provide uniform drying driving the moisture out both from peripheral and central parts of the cores and molds.
